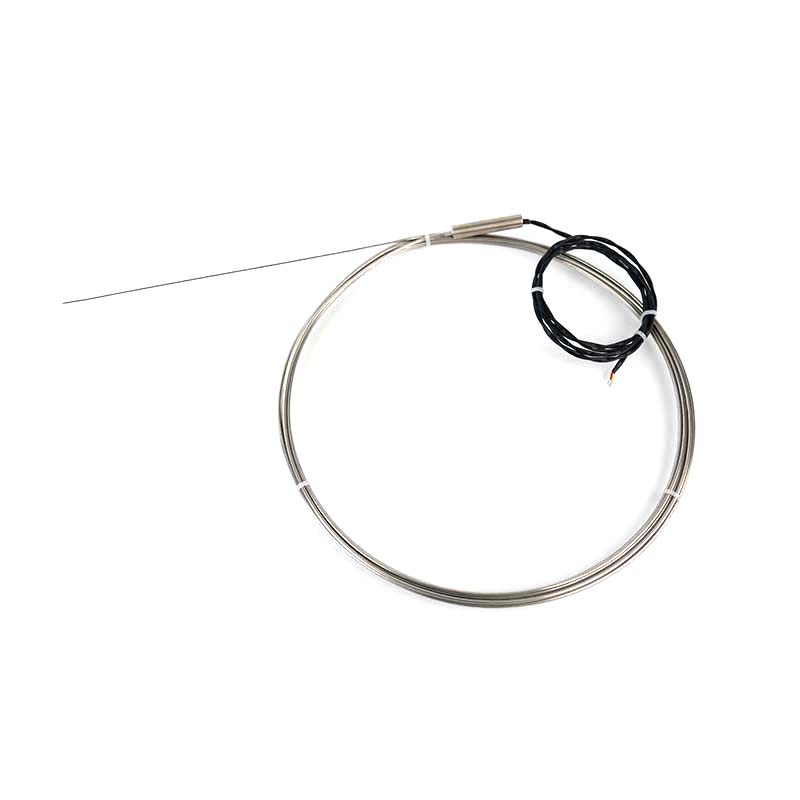

Product item No.: SKT-2593
Thermocouple type | K type |
Structure | Variable cross-section sheathed |
Accuracy | Class 1 |
P/N | 379A9705P053 |
Scope of use for armored thermocouples | 100~450℃ |
Scope of use of compensation line | 0~100℃ |
Induction length | 7500±75mm |
Connection tube size | φ12.70x 63.50mm |
Cable length | 1524±100mm |
Working end form | Insulation type |
Insulation resistance | The insulation resistance between the cable and the housing (500VDC), after being powered on for 1 minute, the insulation resistance is ≥125MΩ |
