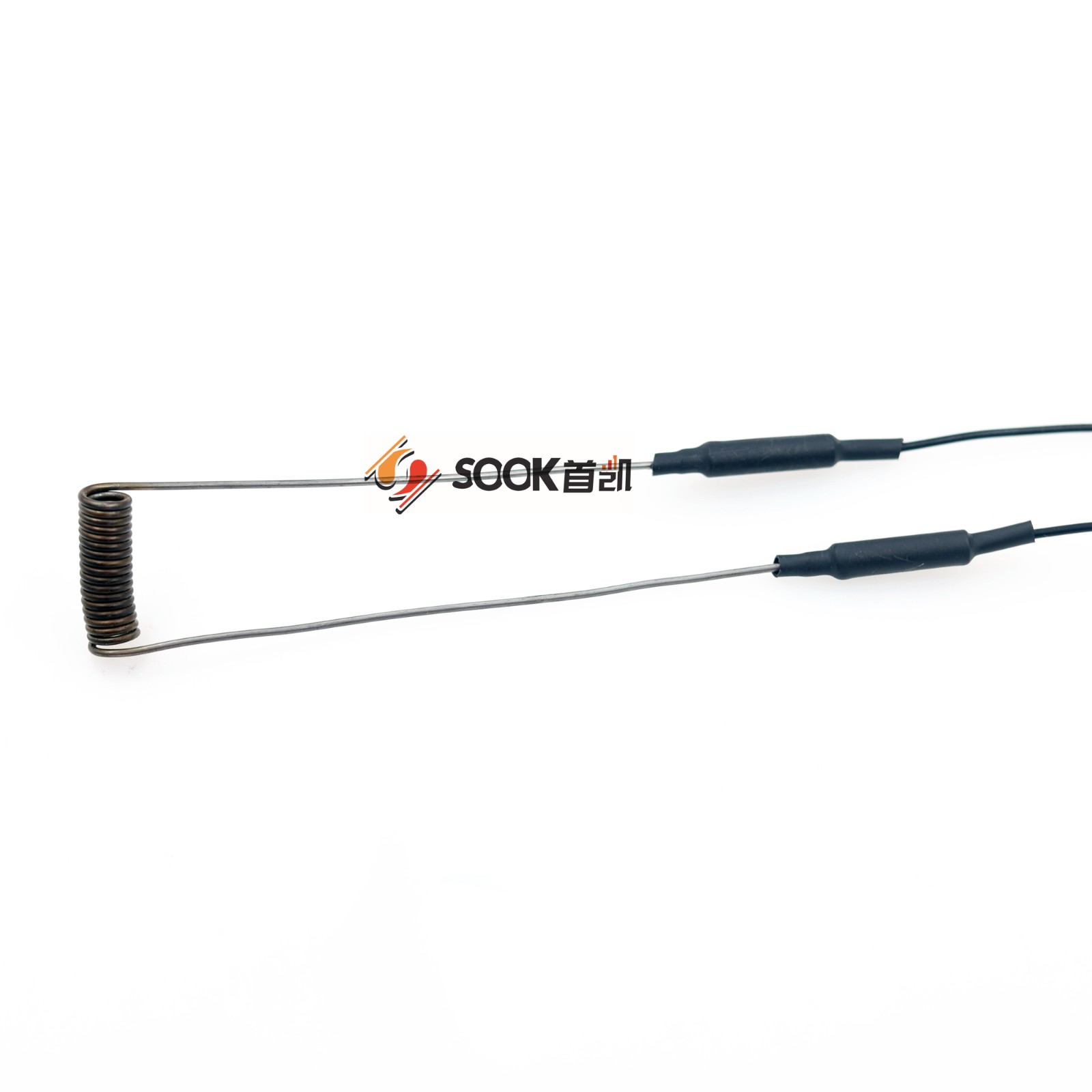

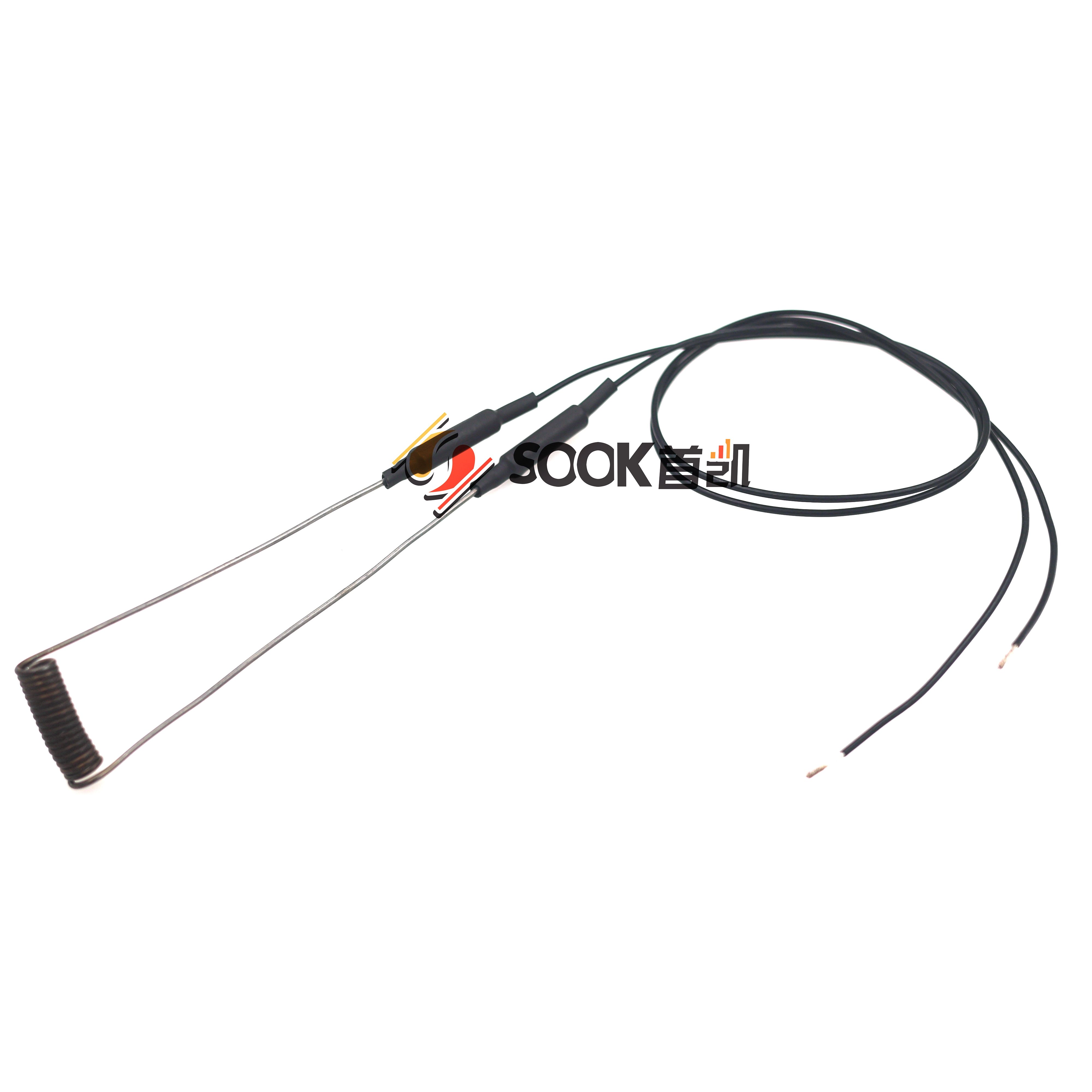

Miniature armored electric heater
| Miniature armored electric heater | ||||
| Product Model | SK-KJ-C1-12W/24V | |||
| Core wire q'ty | 1 | |||
| Heating temperature | 800℃ | |||
| Working Power | 12W | |||
| Working voltage | 24V | |||
| Product description | Miniature armored electric heater (24V) heating temperature of 800 degrees, middle spiral part heating zone, non-heating zone at both ends | |||
The product can be custom-made
Armored heaters
The working principle of generating heat through the conductor using an electric current and transmitting heat to the heated body by means of radiation, convection and conduction. The product is composed of alloy thermoelectric wire, insulating material, metal casing and three solid body.
It has a long service life, high mechanical strength, corrosion resistance, high thermal efficiency, uniform heating, safety and sanitation, convenient installation and maintenance, etc. In addition, it also has the outer protection pipe with small diameter, long length, can be arbitrarily bent into various shapes and other characteristics.
This kind of product can directly heat solid, liquid and gas in 0~900 ℃, widely used in petrochemical industry, mechanical electronics, aviation, aerospace, nuclear energy, national defense research, household appliances and other national economy.
