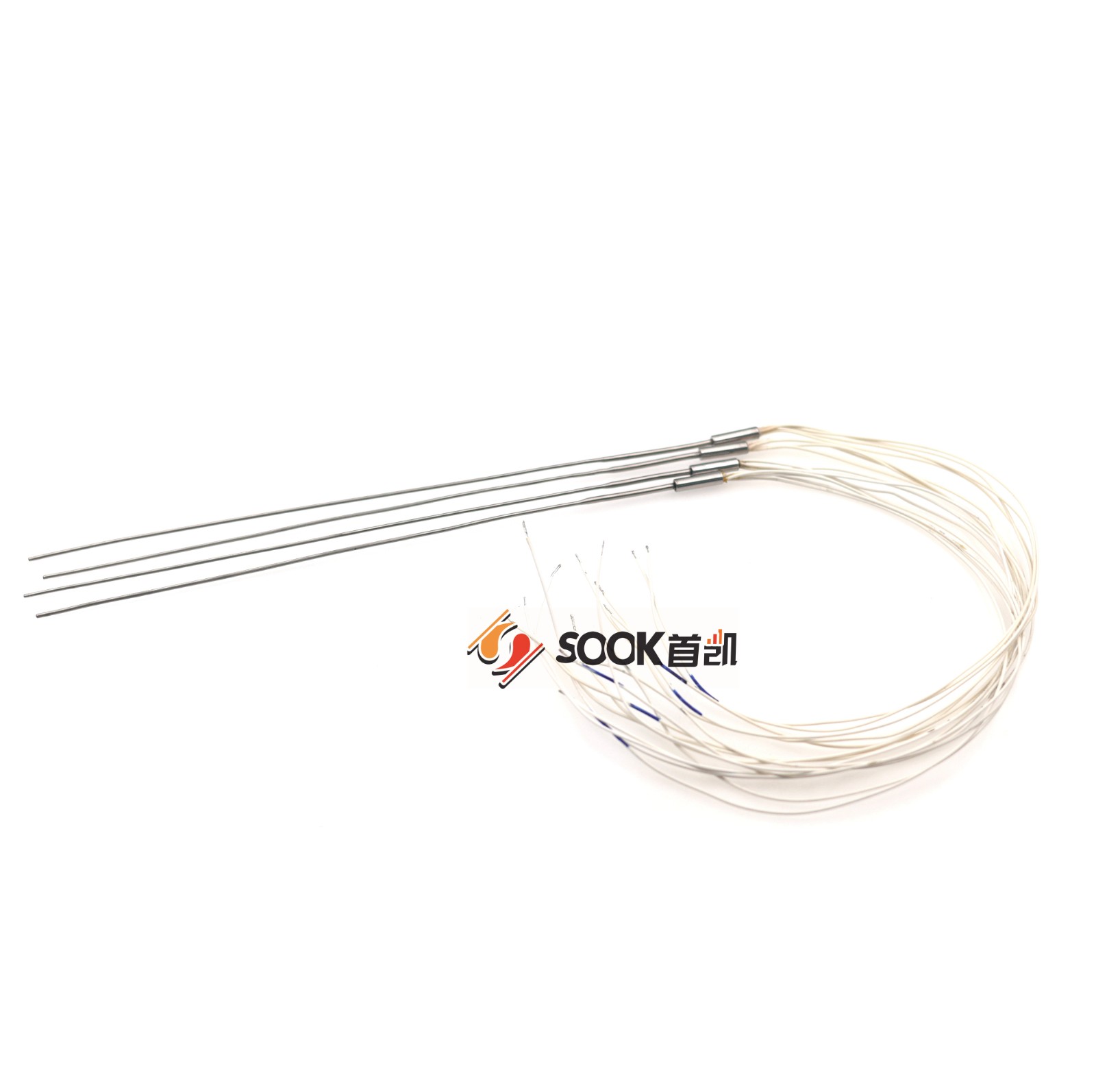

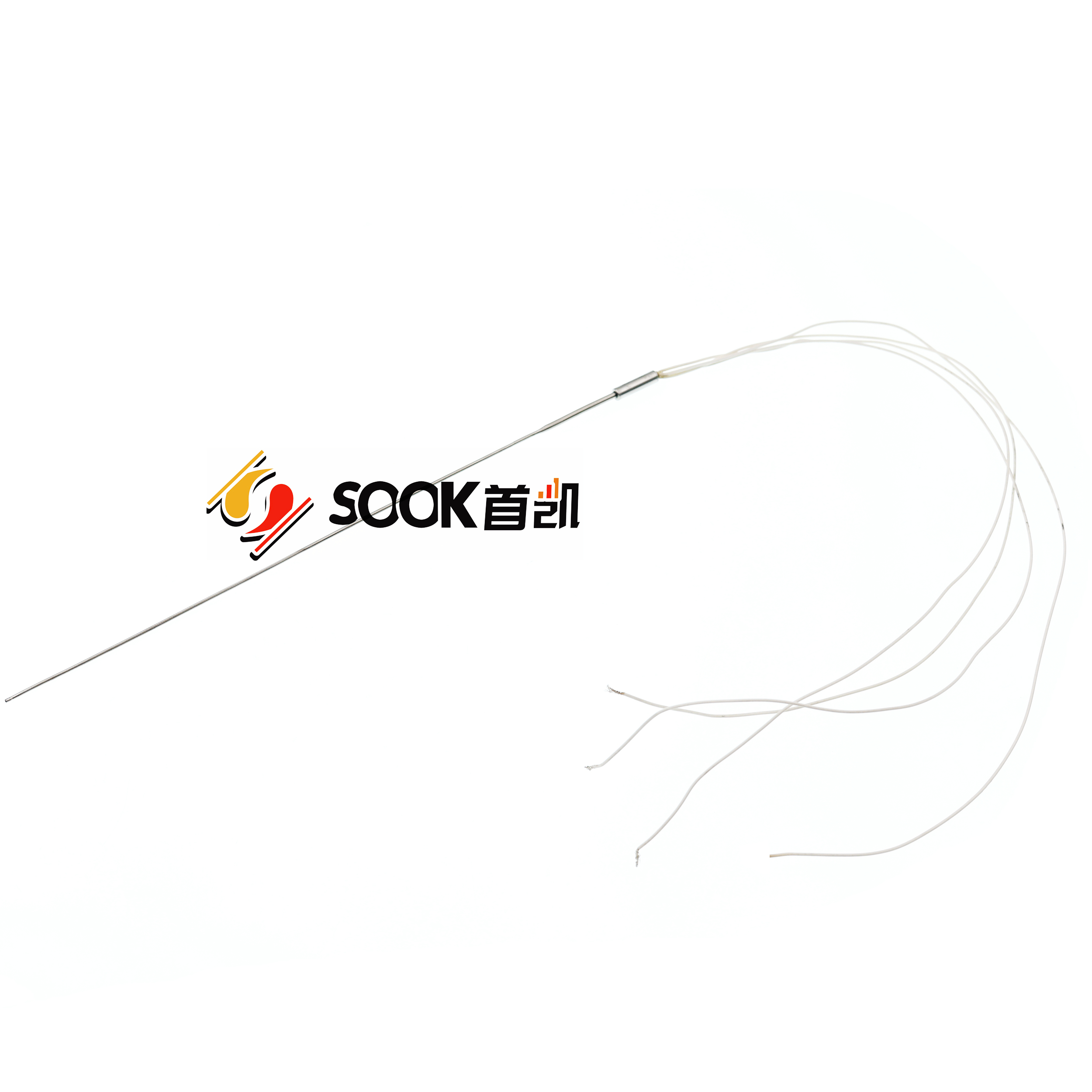

High-temperature resistant variable cross-section armored heater

High-temperature resistant variable cross-section armored heater
Product Model		SK-KJ2-Φ1.2x165+Φ2x30-2x2.5W/5V/Inconel 600

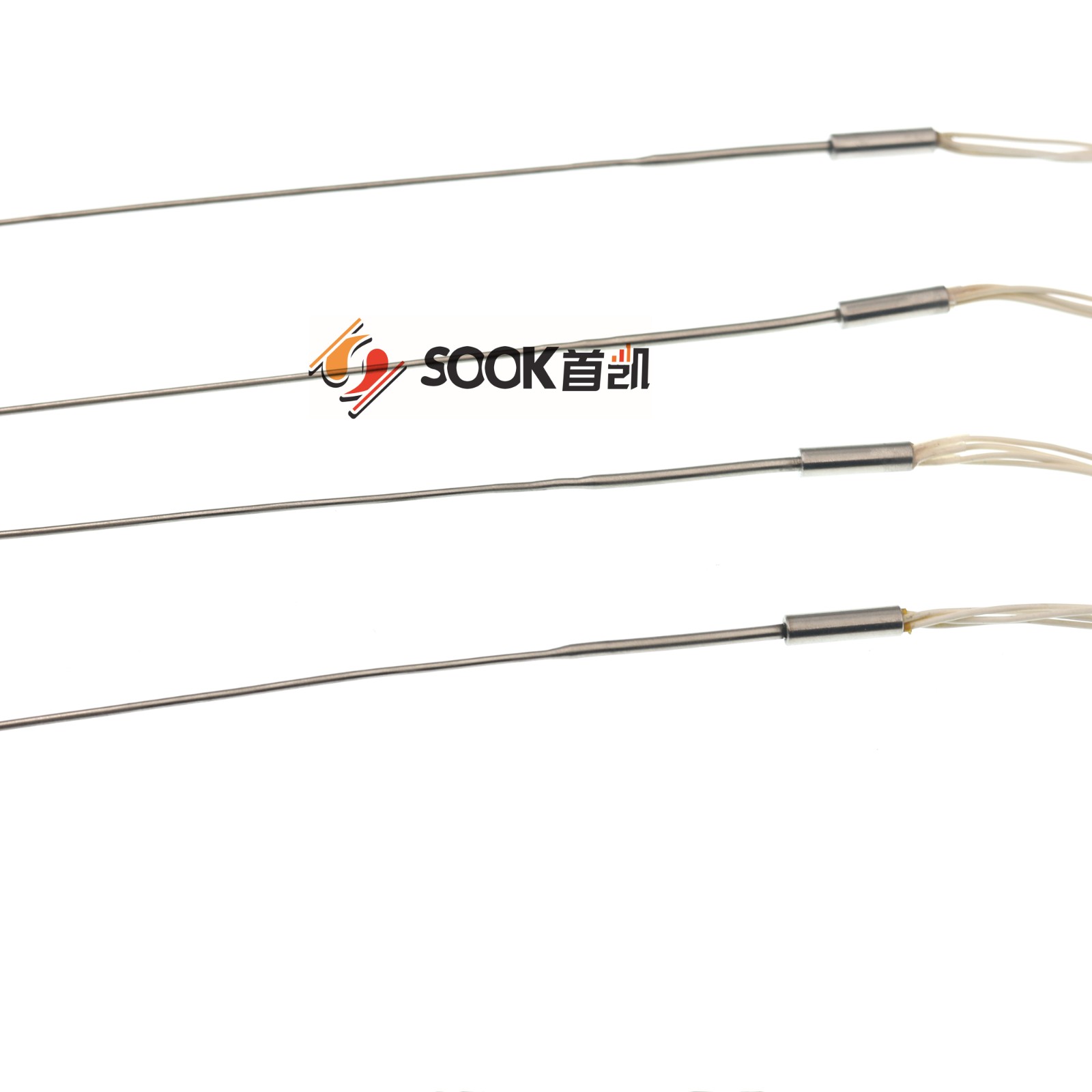

Structural feature		Variable cross-section
Main heating section
Dia.		Φ1.2±0.1mm
Length		165±15mm
Secondary heating section
Dia.		Φ2mm
Length		30mm
Connecting line
Dia.		Φ4mm
Length		15mm
Lead wire
length		300mm
Voltage		5±1V
Heating power		2.5W(each)
Resistance value		9-10Ω
Normal temperature insulation		250MΩ/250VDC
High-temperature insulation		100MΩ/multimeter
Core wires q'ty		2
Working power		2.5W
Working voltage		5V

The product can be custom-made.

Armored heaters

The working principle of generating heat through the conductor using an electric current and transmitting heat to the heated body by means of radiation, convection and conduction. The product is composed of alloy thermoelectric wire, insulating material, metal casing and three solid body.

It has a long service life, high mechanical strength, corrosion resistance, high thermal efficiency, uniform heating, safety and sanitation, convenient installation and maintenance, etc. In addition, it also has the outer protection pipe with small diameter, long length, can be arbitrarily bent into various shapes and other characteristics.

This kind of product can directly heat solid, liquid and gas in 0~900 ℃, widely used in petrochemical industry, mechanical electronics, aviation, aerospace, nuclear energy, national defense research, household appliances and other national economy.
