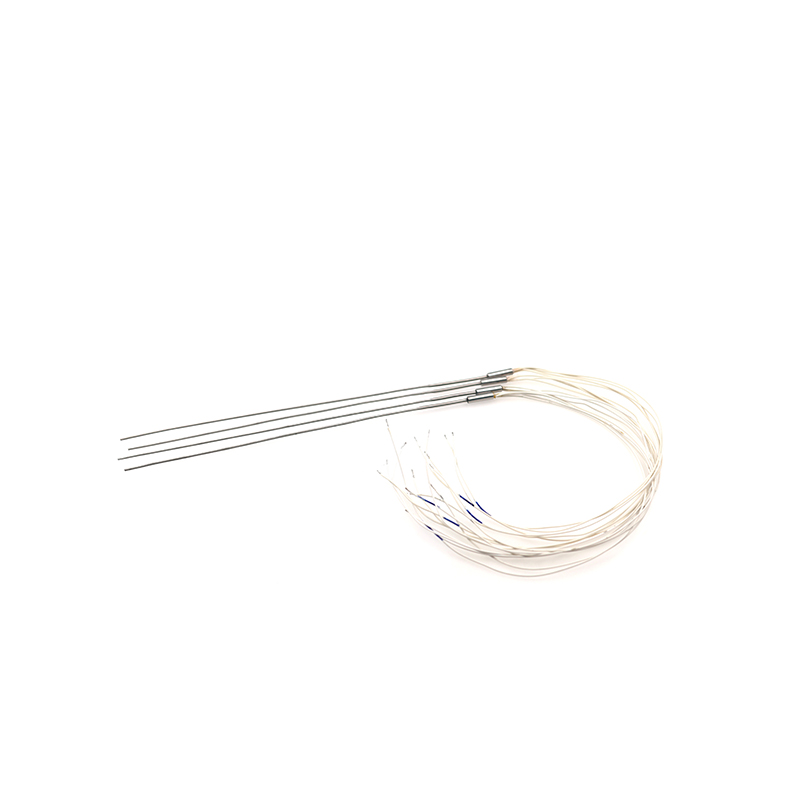

Product Model: SK-KJ2-Φ1.2x165+Φ2x30-2x2.5W/5V/Inconel 600
Structural feature | Variable cross-section sheathed | |
Sheathed material | Inconel 600 | |
Main heating section | Dia. | Φ1.2±0.1mm |
Length | 165±15mm | |
Secondary heating section | Dia. | Φ2mm |
Length | 30mm | |
Connection | Dia. | Φ4mm |
Length | 15mm | |
Lead wire | length | 300mm |
Heating power | 2.5W(each) | |
Resistance value | 9-10Ω | |
Normal temperature insulation | 250MΩ/250VDC | |
High-temperature insulation | 100MΩ/multimeter | |
Core wires q'ty | 4 | |
Working voltage | 5V |
